Product Summary

APPLICATIONS:
Wireless sensor networks
Automatic meter reading/smart metering Industrial wireless control
Healthcare
Wireless audio/video Consumer electronics

ZigBee

FEATURES:

 Frequency range (global ISM band)
2400 MHz to 2483.5 MHz Programmable data rates and modulation IEEE 802.15.4-2006-compatible (250 kbps)
GFSK/FSK/GMSK/MSK modulation
50 kbps to 2000 kbps data rates
Low power consumption 19 mA (typical) in receive mode
21.5 mA (typical) in transmit mode (PO = 3 dBm)
1.7 μA, 32 kHz crystal oscillator wake-up mode High sensitivity (IEEE 802.15.4-2006) ?95 dBm at 250 kbps
High sensitivity (0.1% BER)
?96 dBm at 62.5 kbps (GFSK)
?93 dBm at 500 kbps (GFSK)
?90 dBm at 1 Mbps (GFSK)
?87.5 dBm at 2 Mbps (GFSK)



Diagrams



Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADF7242BCPZ
ADF7242BCPZ

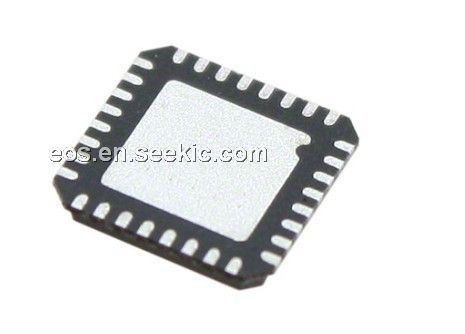

IC TX IEEE 2.4GHZ 32LFCSP
Data Sheet
0-1: $3.66
1-10: $3.27
10-100: $2.68
100-250: $2.42
250-500: $2.17
500-1000: $1.83
1000-2500: $1.74
ADF7242BCPZ-RL
ADF7242BCPZ-RL

IC TX IEEE 2.4GHZ 32LFCSP
Data Sheet
0-5000: $1.74
