Product Summary

APPLICATIONS
Wireless sensor networks
Automatic meter reading/smart metering
Industrial wireless control
Healthcare
Wireless audio/video
Consumer electronics
ZigBee

FEATURES:
Frequency range (global ISM band) 2400 MHz to 2483.5 MHz
IEEE 802.15.4-2006-compatible (250 kbps)
Low power consumption 19 mA (typical) in receive mode 21.5 mA (typical) in transmit mode (PO = 3 dBm) 1.7 μA, 32 kHz crystal oscillator wake-up mode
High sensitivity
?95 dBm at 250 kbps
Programmable output power
?20 dBm to +4.8 dBm in 2 dB steps
Integrated voltage regulators 1.8 V to 3.6 V input voltage range
Excellent receiver selectivity and blocking resilience
Zero-IF architecture
Complies with EN300 440 Class 2, EN300 328, FCC CFR47 Part 15, ARIB STD-T66
Digital RSSI measurement
Fast automatic VCO calibration
Automatic RF synthesizer bandwidth optimization



Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

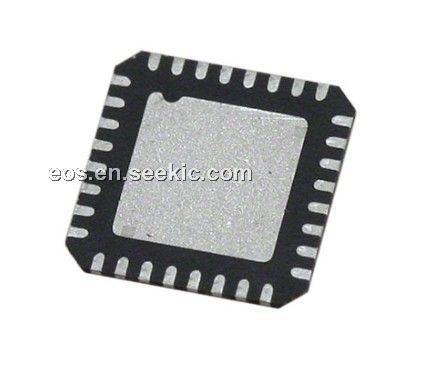

ADF7241BCPZ
ADF7241BCPZ

TXRX IEEE 2.4GHZ 32-LFCSP
Data Sheet
0-1: $3.08
1-10: $2.75
10-100: $2.26
100-250: $2.04
250-500: $1.83
500-1000: $1.54
1000-2500: $1.47

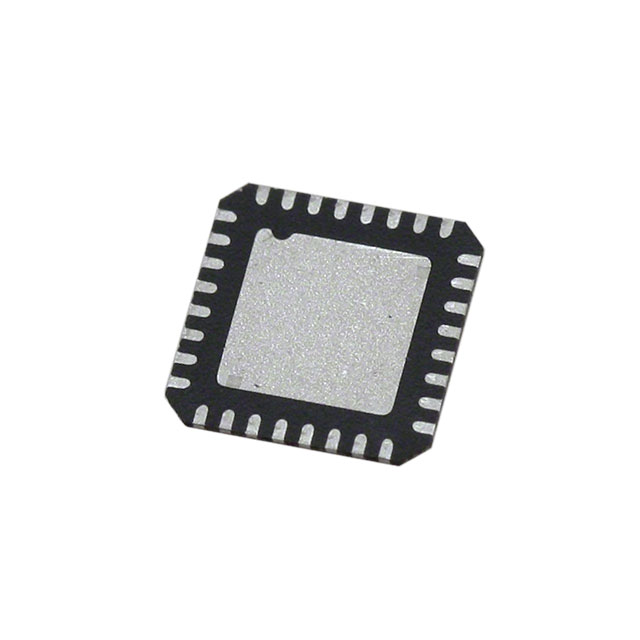

ADF7241BCPZ-RL7
ADF7241BCPZ-RL7

IC TXRX 2.4GHZ 802.15.4 32LFCSP
Data Sheet
0-1500: $1.54
