Product Summary
The TIRIS RF-Module IC for Automotive Application, RI-RFM-006A, provides the following features
amongst others:
· It incorporates a transmitter circuit with power selector and an open drain transmission power
predriver.
· Also incorporated are a receiver signal amplifier and a digitized FSK signal demodulator.
· I/O specifications: Conform to TIRIS standard RF-module specifications, with available signals of
TXCT–, RXDT–(1) and RXCK only.
· Operating supply voltage: 4.5 V to 5.5 V
· Operating temperature range: –40°C to 85°C

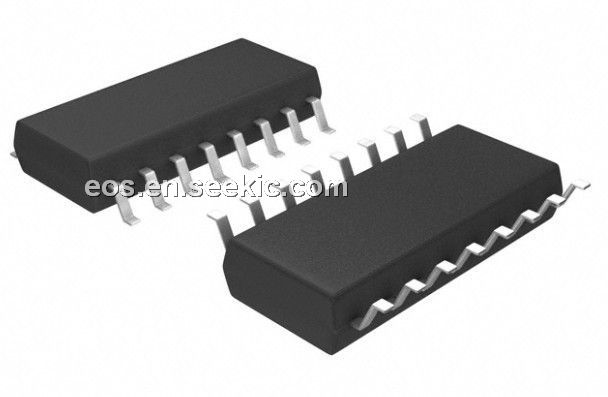

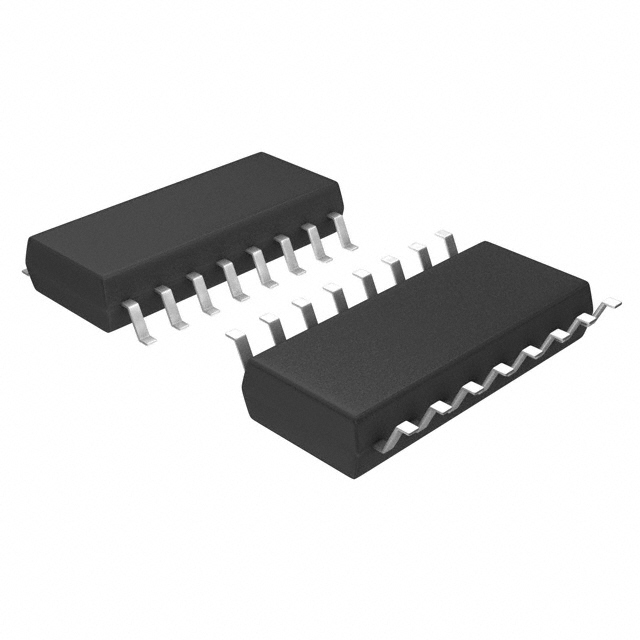

· Package: 16-pin SO package
· Structure: CMOS process
Parametrics
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CF45538NSRG4 |
Texas Instruments |
RF Wireless Misc |
Data Sheet |
Negotiable |
|
||||
