Product Summary
APPLICATIONS
Low cost wireless data transfer
Wireless medical applications
Remote control/security systems
Wireless metering
Keyless entry
Home automation
Process and building control
Features
FEATURES
Low power, low IF transceiver
Frequency bands
135 MHz to 650 MHz, direct output
80 MHz to 325 MHz, divide-by-2 mode
Data rates supported
0.15 kbps to 200 kbps, FSK
0.15 kbps to 64 kbps, ASK
2.3 V to 3.6 V power supply
Programmable output power
?20 dBm to +13 dBm in 63 steps
Receiver sensitivity
?119 dBm at 1 kbps, FSK, 315 MHz
?114 dBm at 9.6 kbps, FSK, 315 MHz
?111.8 dBm at 9.6 kbps, ASK, 315 MHz
Low power consumption
17.6 mA in receive mode
21 mA in transmit mode (10 dBm output)
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADF7020-1BCPZ |
|

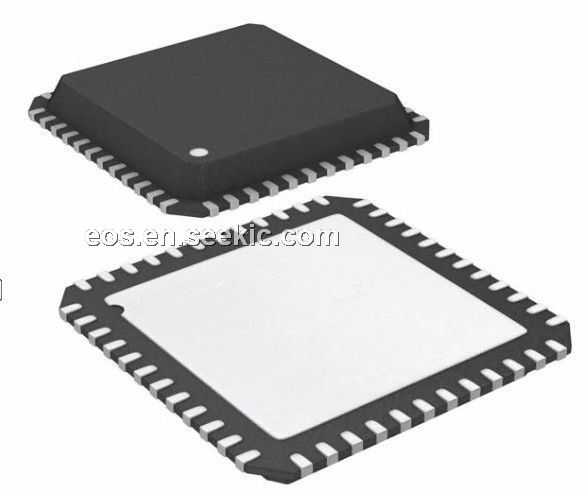

IC TX FSK/ASK ISM BAND 48LFCSP |
Data Sheet |
|
|
||||||||||||||||||
|
ADF7020-1BCPZ-RL |
|
IC TX FSK/ASK ISM BAND 48-LFCSP |
Data Sheet |
|
|
||||||||||||||||||
|
ADF7020-1BCPZ-RL7 |
|
IC TX FSK/ASK ISM BAND 48-LFCSP |
Data Sheet |
|
|
||||||||||||||||||
