Product Summary

 Rail-To-Rail Output
 Wide Bandwidth . . . 3 MHz
 High Slew Rate . . . 2 .4 V/μs
 Supply Voltage Range . . . 2.7 V to 16 V
 Supply Current . . . 550 μA/Channel
 Input Noise Voltage . . . 39 nV/√Hz
 Input Bias Current . . . 1 pA
 Specified Temperature Range
0°C to 70°C . . . Commercial Grade
?40°C to 125°C . . . Industrial Grade
 Ultrasmall Packaging
? 5 Pin SOT-23 (TLV271)
? 8 Pin MSOP (TLV272)
 Ideal Upgrade for TLC27x Family

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

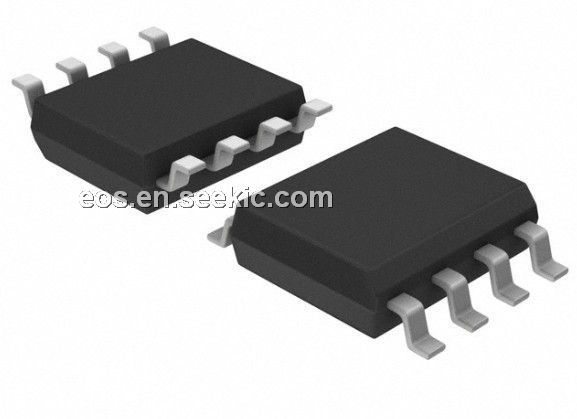

TLV272IDR
TLV272IDR
Texas Instruments
Operational Amplifiers - Op Amps 2-Ch R-R Op Amp
Data Sheet
0-1: $0.65
1-25: $0.52
25-100: $0.46
100-250: $0.40
TLV272IDRG4
TLV272IDRG4
Texas Instruments
Operational Amplifiers - Op Amps 550-uA/Ch 3-MHz Rail-to-Rail Out
Data Sheet
0-1: $0.57
1-25: $0.46
25-100: $0.41
100-250: $0.36
