Product Summary
Designed for 26 volts microwave large–signal, common emitter, class A and
class AB linear amplifier applications in industrial and commercial FM/AM
equipment operating in the range 1400–1600 MHz.
? Specified 26 Volts, 1490 MHz, Class AB Characteristics
Output Power — 90 Watts (PEP)
Gain — 7.5 dB Min @ 90 Watts (PEP)
Collector Efficiency — 30% Min @ 90 Watts (PEP)
Intermodulation Distortion — –28 dBc Max @ 90 Watts (PEP)
? Third Order Intercept Point — 56.5 dBm Typ @ 1490 MHz, VCE = 24 Vdc,
IC = 5 Adc
? Characterized with Series Equivalent Large–Signal Parameters from
1400–1600 MHz
? Characterized with Small–Signal S–Parameters from 1000–2000 MHz
? Silicon Nitride Passivated
? 100% Tested for Load Mismatch Stress at All Phase Angles with 3:1 Load
VSWR @ 28 Vdc, and Rated Output Power
? Gold Metallized, Emitter Ballasted for Long Life and Resistance to
Metal Migration
? Circuit board photomaster available upon request by contacting
RF Tactical Marketing in Phoenix, AZ.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

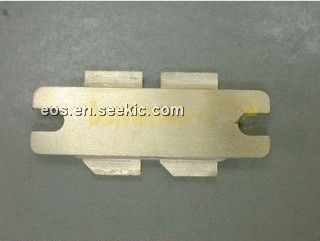

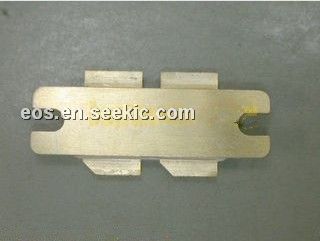

 MRF15090 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MRF1.6/5.6 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MRF1.6/5.6-AP-2.5C |
Hirose Connector |
RF Connectors Obsolete |
Data Sheet |
Negotiable |
|
||||
|
MRF1.6/5.6-AP-59U |
Hirose Connector |
RF Connectors Obsolete |
Data Sheet |
Negotiable |
|
||||
|
MRF1.6/5.6-BCUPA |
Hirose Connector |
RF Connectors Obsolete |
Data Sheet |
Negotiable |
|
||||
|
MRF1.6/5.6-LPJ-179U |
Hirose Connector |
RF Connectors Obsolete |
Data Sheet |
Negotiable |
|
||||
 |
MRF1.6/5.6-LR-PC-1 |
Hirose Connector |
RF Connectors Obsolete |
Data Sheet |
Negotiable |
|
||||
