Product Summary
N–Channel Enhancement–Mode
. . . designed for wideband large–signal amplifier and oscillator applications up
to 400 MHz range.
? Guaranteed 28 Volt, 150 MHz Performance
Output Power = 5.0 Watts
Minimum Gain = 11 dB
Efficiency — 55% (Typical)
? Small–Signal and Large–Signal Characterization
? Typical Performance at 400 MHz, 28 Vdc, 5.0 W
Output = 10.6 dB Gain
? 100% Tested For Load Mismatch At All Phase Angles
With 30:1 VSWR
? Low Noise Figure — 2.0 dB (Typ) at 200 mA, 150 MHz
? Excellent Thermal Stability, Ideally Suited For Class A
Operation
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

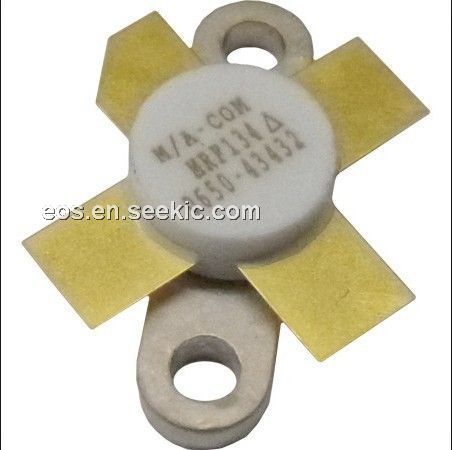

 MRF134 |
M/A-COM Technology Solutions |
Transistors RF MOSFET Power 5-400MHz 5 Watts 28Volt Gain 11dB |
Data Sheet |
|
|
||||||||||||
