Product Summary
HMC142 Datasheet (PDF) - Hittite Microwave Corporation - GaAs MMIC DOUBLE-BALANCED MIXER, 6 - 18 GHz
The HMC141 chip is a minature double-balanced
mixer which can be used as an upconverter or downconverter.
The HMC142 is identical to the HMC141
except that the layout is a mirror image designed to
ease integration into image-reject mixer modules.
Broadband operation and excellent isolations are provided
by on-chip baluns, which require no external
components and no DC bias. The design is similar
to the HMC143/144 mixers but without an IF combiner,
providing a broad DC to 6 GHz IF bandwidth.
These devices are much smaller and more reliable
than hybrid diode mixers for VSAT and point-to-point
radios.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HMC142 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|

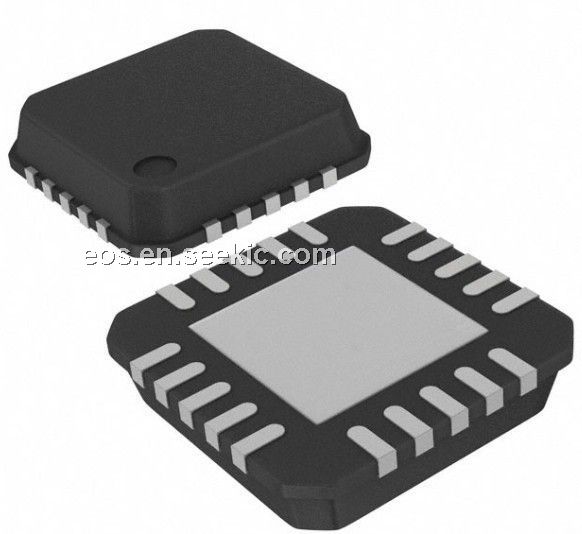

HMC142C8 |
Other |
|
Data Sheet |
Negotiable |
|
||||
